Custom Frame & Hard Tail Options
not all options available with some models
please feel free complete an inquiry form with your preferences
and Cycle One would be happy to work with you
on your
custom frame plans


Curved tubes
Neck gusset styles
Drop Seats - Traditional & Pocket Style
2" - 4"  and 6" rear section stretch
Curved chain stays
V Style axle plates in 1", 17mm, 20mm
Vintage HD Style axle in 3/4", 1", 17mm, 20mm

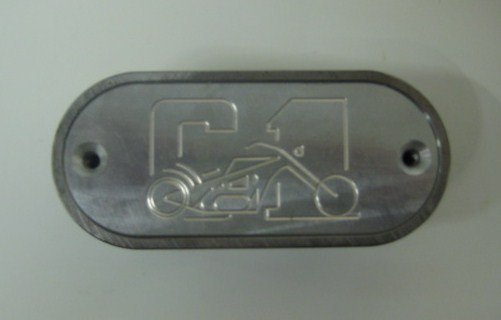

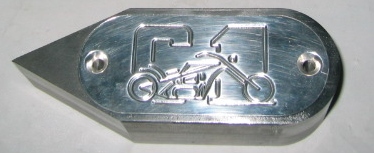

Hidden Axle Block choices 3/4" & 1" & 20mm in V Style or Round End
Custom ride heights of 3" or 5"
Jackshaft Assemblies



Neck

Example of Rake & Neck Type

- choice of rake for the neck, in degrees
   standard - included in frame cost

____ Degrees/ Rake
        (i.e. 30, 32, 34, 36, 38, 40, 42, 44,
              45, 48, 50)
*It is advised as an industry standard to use a springer/girder front end  with rake applications above 40°.

34 degrees
50 degrees


- choice of one of 3 neck types
   standard - included in frame cost

- Harley Davidson Big Twin 1"- 41mm front ends - uses external bearing cups
- Harley Davidson Twin Cam/Buell/Sportster
- Honda CB750 - 1969-1978
**cups, races and bearings are available


Neck Gusset

Example Neck Gusset

-Tri-Star Point Plate
  standard - included in frame cost

- gooseneck - additional $ 50.00
  **must have minimum backbone
     stretch of 4"

- tube gusset - additional $ 30.00



Tri-Star
Gooseneck - Custom Add On

Tube style

Backbone

Examples of Backbone Stetch & Style


- choice of stretch in backbone (portion of frame from the front of
   the seat pan to the neck)
- standard frame price includes up to +3"

____ inches forward
        (i.e. 0, 2, 4, 6, 8 inches)
*additional material charges apply if over 3"
4" to 6" - $ 10.00
7" to 9" - $ 20.00
10" to 12" - $30.00

2 inches forward
5 inches forward


- your choice of two styles for the
  backbone
–  straight - standard included in
                 frame cost
 - curved - additional $ 30.00



Straight
Curved

Downtube
Examples of Downtube/s Stretch,Style & Type

 - choice of stretch in the
   downtube/downtubes -
   standard frame cost includes up to 3" of upstretch
   (the portion of the frame from the
   top of the neck that runs down to
   the front frame rails) in inches.

  ____ inches up
          (i.e. -2* 0, 2, 4, 6, 8 inches)
* -2 requires the use of a curved backbone
**additional material charges apply if over 3"
4" to 6" - $ 20.00
7" to 9" - $ 30.00
10" to 12" - $ 40.00

1" up
6" up


- choice of downtube configuration
  (the standard frame price includes a single straight, or dual straight downtubes)
  • Single straight
  • Dual Straight
  • Single Curved - additional $ 30.00
  • Tribute Denver style - additional
    $ 100.00


Single in Straight
Single straight downtube kawkz1000p.5fsbb.8ussdt.38r.btn.250rr.5rh.1ap.jpg
Dual in Straight
single curved downtube
Tribute Denver style downtube

Curved Chain Stays



Example where:
Rear Upper & Lower Chain Stays
are "Curved"Add your content here

     - curved rear chain stays - additional $ 150.00
       ** not available with pocket style drop seats

curved upper and chain stays

Axle Plates & Hidden Axle Blocks

V Style axle plates in 3/4" are included in standard frame pricing
1" and 20mm by special request -$ 20.00

3/4" axle plates

Vintage HD Style axle plates - available in 3/4" - additional $ 20.00
1" or 20mm by special request - additionl $ 20.00

Vintage Axle Plate 3/4" axle

Seating Options
Examples of Seat styles
      - standard seating is included
        with frame cost

      - drop seat* in 2 styles
                    - tradional - $ 50.00
                    - pocket - $ 50.00

standard

drop seat - tradional

drop seat - pocket

Rear Drive

Example of a stock Sporster rear tire and a 250 rear tire.

5 choices in drive sizes.

- standard - included in frame price
-  200mm  rear wheel*
-  250mm rear wheel - $ 20.00
-  300mm rear wheel - $ 30.00
-  330mm rear wheel - $ 40.00
**additional shipping charges apply for all wide tire applications of 200mm and larger
* some wide tire applications require jackshaft assemblies or outboard bearing assemblies.


+2",+4" or +6" Rear Stretch
Example of  2" rear stretch
     2",4" or 6" rear stretch* is available for use with chain drive finals only
      *frame pictured has curved backbone & drop seat options also
      ** metric frame standard models include 2" of rear stretch
      *** additional rear stretch available for
            2" - $ 25.00
            4" - $ 50.00
            6" - $ 75.00


Buell frame -chain drive - 2" rear stretch

Jackshaft Assemblies



Integral Jackshaft - allows full primary chain adjustment easily
used with all Softail applications $ 395.00

integral jackshaft

Jackshaft assembly for rigid applications $ 250.00 installed or
$ 200.00 supplied - includes towers and fully adjustable

jackshaft assembly

Custom Ride Height 3" or 5" - $ 30.00

You will require the above information to complete your inquiry form or order form. Should you have any questions please check the FAQ page, or contact us for further assistance, it is our pleasure to work with you to make your dream into reality!
